Table

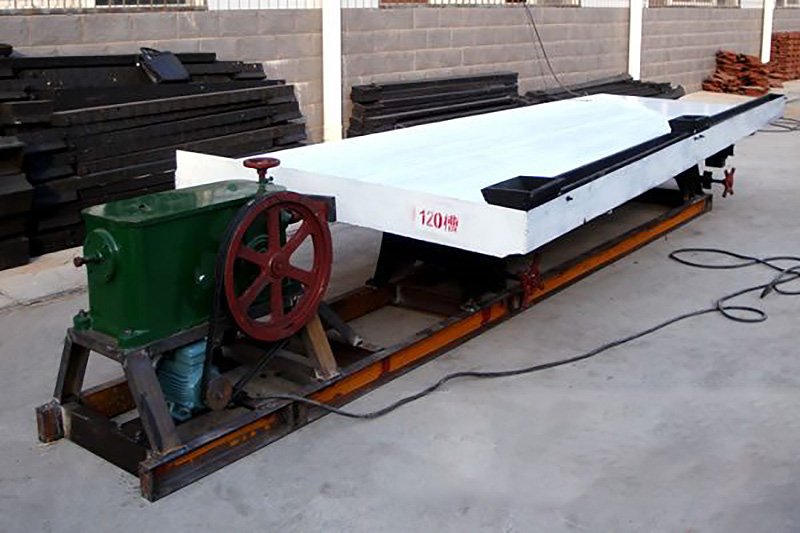

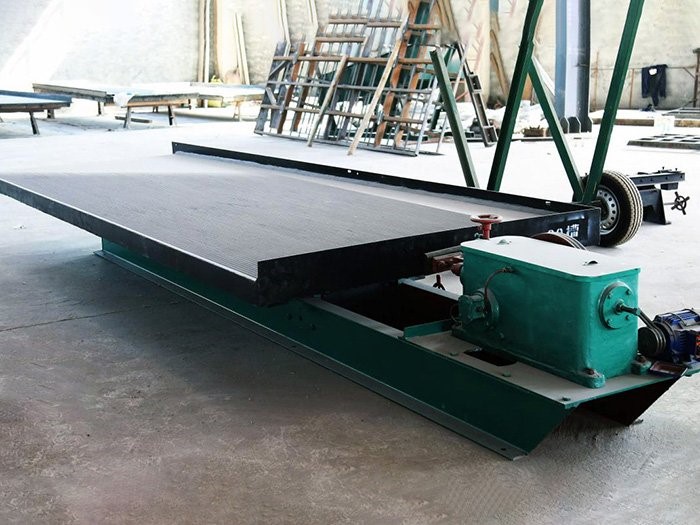

　　The shaking table is a gravity beneficiation equipment for the separation of fine grained materials, which can make the ore particles move in different directions according to their density and particle size, and fan out diagonally from the feed tank, discharge and discharge along the edge of the bed in turn, and accurately produce a variety of products of different quality. Beneficiation shaker has the advantages of simple operation, high concentration ratio, good sorting efficiency and high material recovery. Compared with the traditional process, it has the advantages of no chemical, low energy consumption and easy management. Mainly used for 2-0.02 mm ore and slime grade iron, manganese, gold, tungsten, lead, tin, chromium, titanium, bismuth, tantalum and other non-ferrous metals, ferrous metals and rare precious metal minerals rough, select, sweep and other different beneficiation operations; There is also a selection of pyrite in 4-0.02 mm; Appropriate change of bed bar type can be used to separate fine coal and coal slime and coarse sand, fine sand, mineral slime and other different particle size materials.

　　1. Automatic identification of constant temperature and humidity water
level to prevent evaporation and drying. Silent fan forced convection to ensure
constant temperature.

　　2. Cooling fast and strong refrigeration system, instant cooling, automatic
frost, long-term operation at low temperature.

　　3. Self-protection Automatic operation of the door, leakage overcurrent
protection and other safety protection functions.

　　4. Audible and visual alarm When the motor is overheating and the speed is
out of control, the protective power supply is cut off and the audible and
visual alarm is given.

　　The shaker is mainly composed of motor, slope adjuster, bed head, bed surface, sink, mine trough, and other parts. The motor drives the belt to drive the pulley to rotate, the crankshaft rotating rocker moves up and down under the

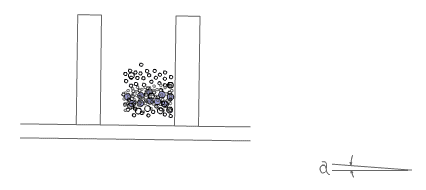

rotation of the pulley, the crankshaft rotating rocker is connected to the bed surface, the material is input by the feeding trough at the corner of the bed surface, and the sink begins to supply transverse water flow. When the crankshaft rotating rocker moves down, the spring in the bed surface is compressed by the thrust behind the elbow plate and the reciprocating rod, and the bed surface moves backward. When the crankshaft rotating rocker moves  upward, the spring tension causes the bed to move forward, and the material on the bed surface is stratized according to its own specific gravity and particle size under the action of gravity, water impact force and the reciprocating force of the bed surface, and the materials with different specific gravity and particle size are fan-divided along the direction of movement, respectively, to obtain concentrates and tailings, so as to achieve the beneficiation operation of the shaker.
