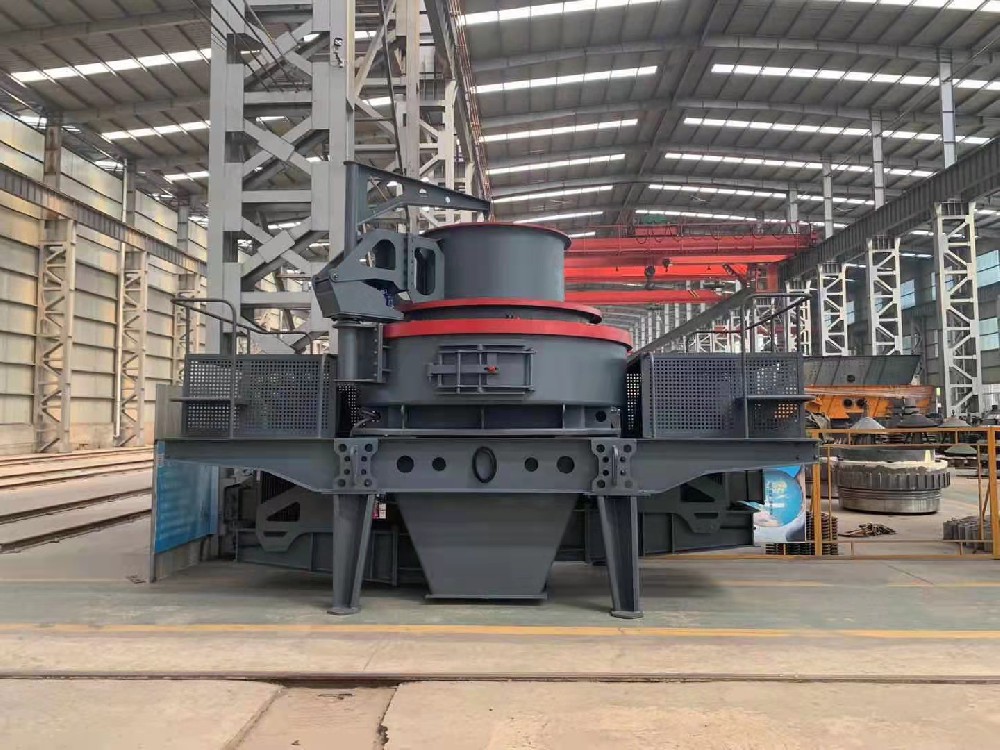

VSI high efficiency sand making machine

Direct deal Quality Assurance Quick response Service worry free

VSI high efficiency sand making machine

Production capacity:60-520t/h

Feed particle size:≤50mm

Applicable materials:Artificial sand making of river pebbles, mountain rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips.

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

VSI high efficiency sand making machineIntroduce

 VSI series vertical shaft sand making machine is a newly designed product based on China's working conditions. It is a high-performance sand making equipment with a considerable level of domestic production at present. The sand making machine is designed to provide high-quality sand and gravel aggregate for expressways, high-speed railways, high-rise buildings, municipal administration, hydropower dam construction and concrete mixing plants. It is an equipment in the field of artificial sand making and stone shaping. It is a new sand making machine with considerable level newly developed by our company. Excellent cost performance. Long term technical accumulation and modern processing equipment ensure the position of VSI series new sand making machine in the domestic sand making industry.



VSI high efficiency sand making machineAdvantage

1. Low cost and little wear

2. Powerful function and good sand making effect VSI high-efficiency sand making machine has fine crushing and coarse grinding functions; High crushing rate, environmental protection and energy saving.

3. Wide range of materialsVSI high efficiency sand making machine is suitable for crushing medium hard and extra hard materials; It is less affected by the moisture content of the material, and can crush stones with a moisture content of about 8%.

4. Energy saving and environmental protection, less dust pollutionThe working noise of VSI high-efficiency sand making machine is lower than 75 dB, with less dust pollution; The product is cubic, with high bulk density and very little iron pollution.






VSI high efficiency sand making machineWorking Principle

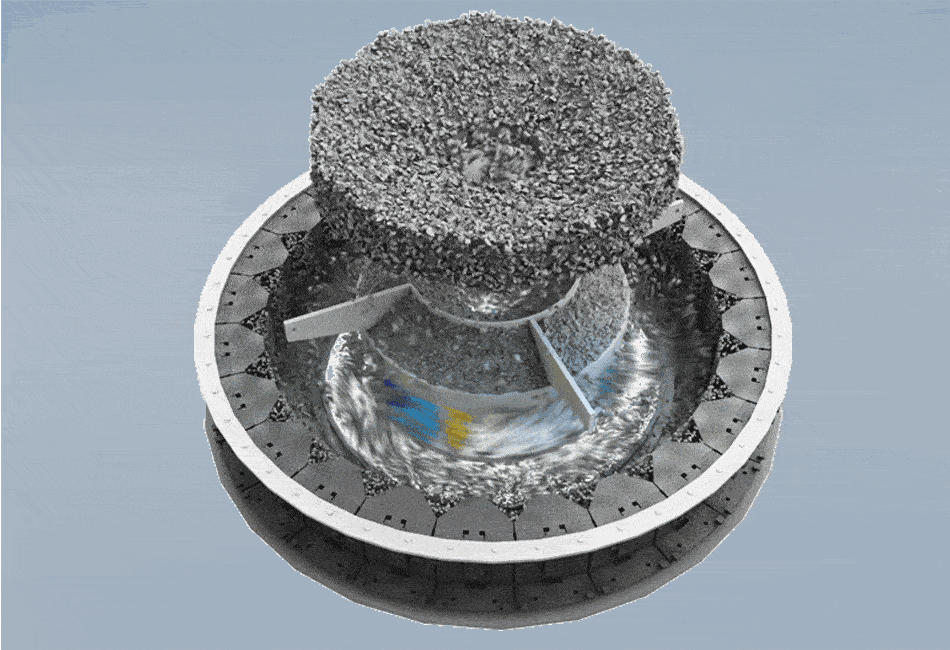

Full center feeding: the materials fall into the feeding hopper of the sand making machine, enter the high-speed rotating swing wheel through the central feeding hole, and are rapidly accelerated in the swing wheel. The acceleration can reach multiple times the gravitational acceleration, and then shoot out from the swing wheel at high speed. First, they collide with another part of the materials that fall freely after rebound, and then they collide with the material lining (stone striking stone) or counterattack block (stone striking iron), and are bounced up to the top of the vortex chamber, It also changes its movement direction, deflects downward, and collides with the materials emitted from the impeller channel to form a continuous material curtain. In this way, a piece of material is subjected to two or more times of probability impact, friction and grinding crushing in the vortex crushing chamber. The crushed materials are discharged from the lower discharge port.



VSI high efficiency sand making machineApplication Scope

VSI high efficiency sand making machineTechnical Parameter


Model

VSI5X7615

VSI5X8522

VSI5X9532

VSI5X1145

Throughput capacity (t/h)

Center and Ring feeding

150~280

240~380

350~540

500~640

Center feeding

70~140

120~190

180~280

250~360

Max. Feed Size (mm)

Soft material

<35

<40

<45

<50

Hard material

<30

<35

<40

<45

Rotation speed (r/min)

1700~1900

1500~1700

1300~1510

1100~1310

Power of double motor (KW)

2×75 (100)

2×110 (150)

2×160 (220)

2×220 (300)

Overall dimension L×W×H (mm)

4100×2330×2300

4140×2500×2700

4560×2600×2900

5000×2790×3320

Weight (t)

8.6

11.8

17.5

27.5

Thin oil lubrication station

Power for double oil pump

2×0.25(0.33)

Safety

TO make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cool;start the motor by heating it in winter

Power for oil box heater

2 KW

Overall dimension L×W×H (mm)

820×520×1270
