European jaw crusher

Direct deal Quality Assurance Quick response Service worry free

European jaw crusher

Production capacity:65-1275t/h

Feed particle size:<800mm

Applicable materials:River pebbles, cobbles, quartzite, limestone, basalt, granite, marble, iron ore, construction waste, etc.

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

European jaw crusherIntroduce

As an important equipment for coarse crushing in the crushing process, European jaw crusher is one of our core products, and it is also a product with a long production history. Over the years, we have been focusing on the R & D and manufacturing of high-performance crushers. With the support of several customers on site, our products have undergone several iterations and upgrades. In addition, we have introduced more advanced European technology to condense the European jaw crusher which is currently at a high level in the market. The European version jaw crusher adopts an innovative modular, non welded structure frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operation reliability of the equipment, and fully ensures the high production, high efficiency and low cost of crushing operation; A variety of flexible installation methods can meet different application options.


European jaw crusherAdvantage

1. deep cavity crushing, energy-saving optimized deep cavity crushing, without dead corners, greatly improved feeding capacity and crushing efficiency, 15%-30% energy saving for single machine and more than twice the energy saving for the system.

2. advanced technology and large crushing force. Advanced crushing technology and digital processing equipment are adopted, with precise internal structure and enhanced crushing capacity.

3. convenient maintenance and improved production efficiency. The equipment adopts grease centralized lubrication system, which is safe and reliable, convenient and fast maintenance, and reduces downtime and maintenance time.

4. green, low noise, equipped with dust removal device, reduce dust generation, reduce pollution, and strictly comply with national environmental protection standards.



European jaw crusherWorking Principle

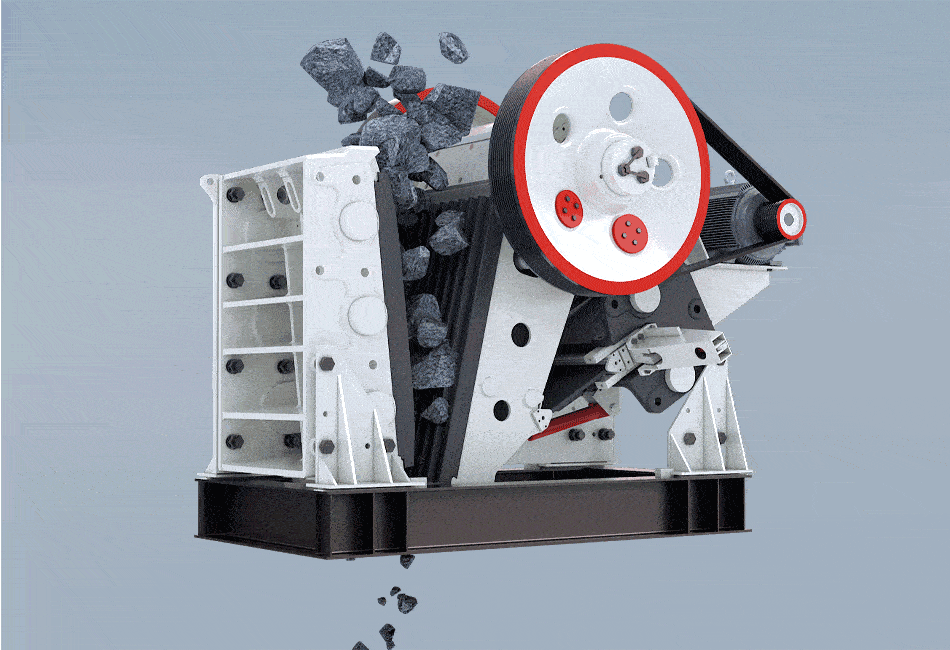

  The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.



European jaw crusherApplication Scope

European jaw crusherTechnical Parameter

model

Feed port size(mm)

yield(t/h)

power(kw)

Special for fixed line

SC80

800X510

65-380

75

SC100

1000X760

150-545

110

SC110

1100X850

190-625

160

SC125

1250X950

290-845

160

SC140

1400X1070

385-945

200

SC160

1600X1100

520-1275

250

SC96

930X580

120-455

90

Mobile broken dedicated

SC106

1060X700

155-580

110

SC116

1150X800

170-600

132

SC120

1200X870

303-529

160
