Circular vibrating screen

Direct deal Quality Assurance Quick response Service worry free

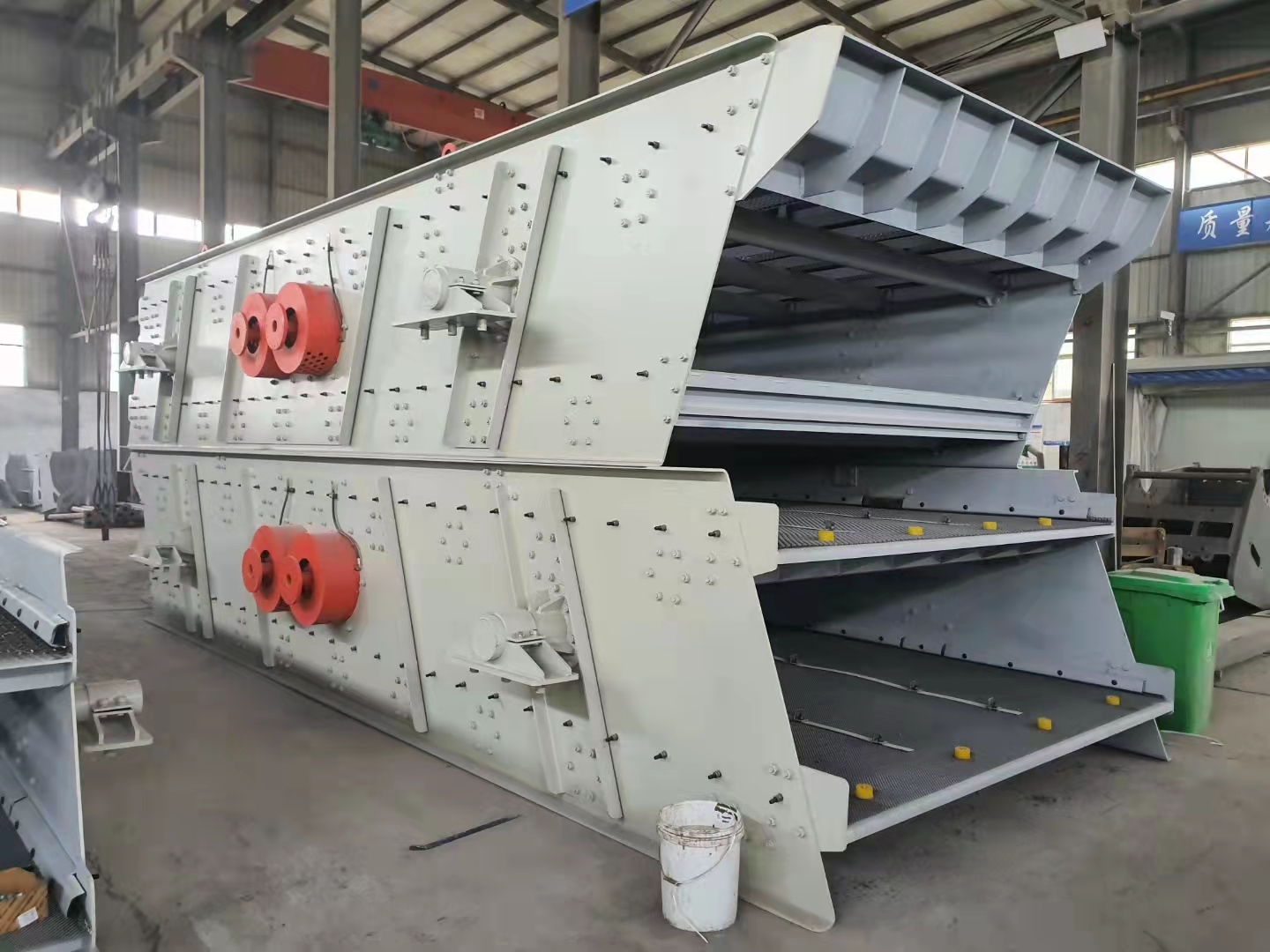

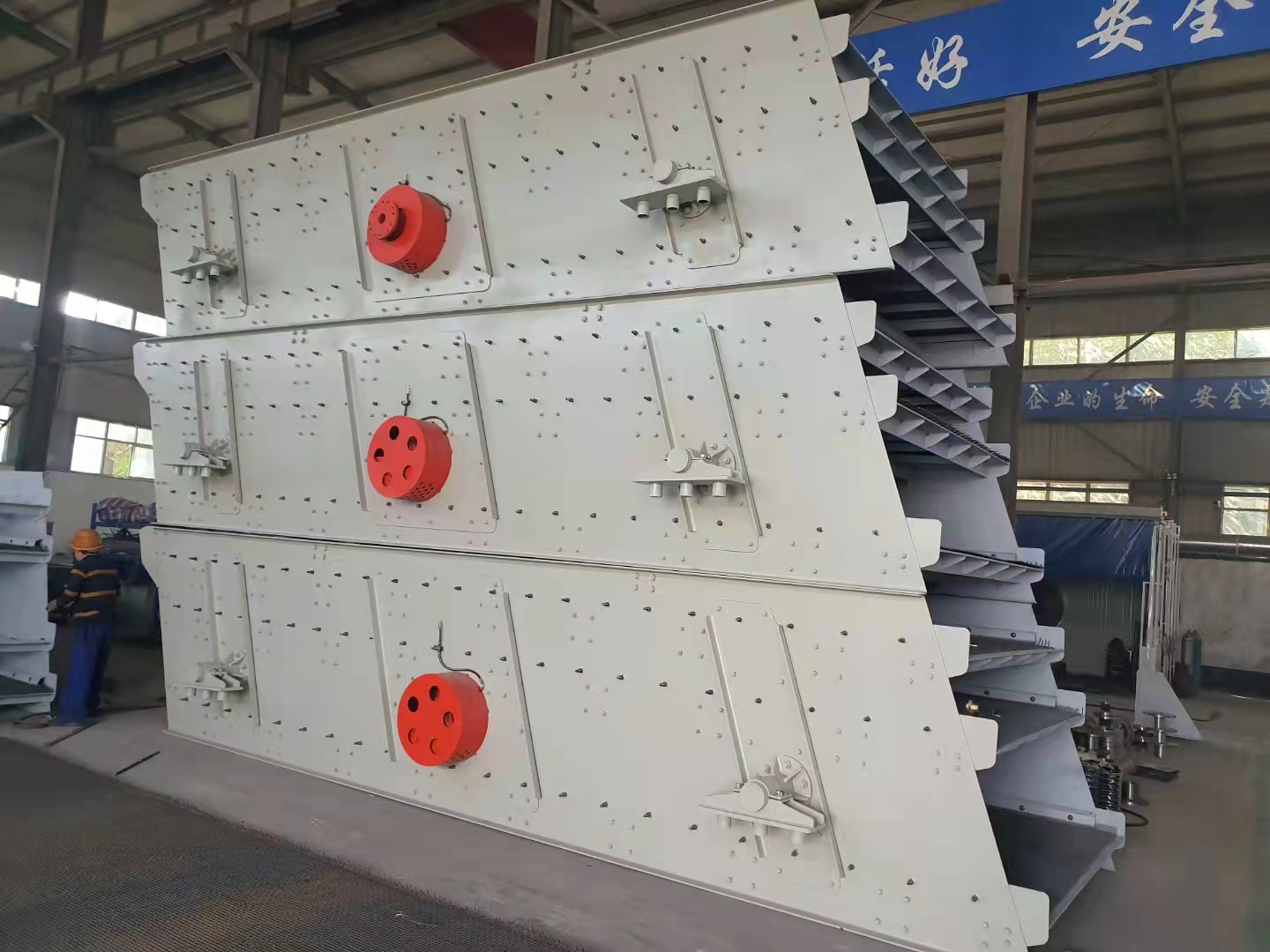

Circular vibrating screen

Production capacity:30-810t/h

Feed particle size:3-150mm

Applicable materials:Quartz, dolomite, dolomite, dolomite, quartz, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite, dolomite

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

Circular vibrating screenIntroduce

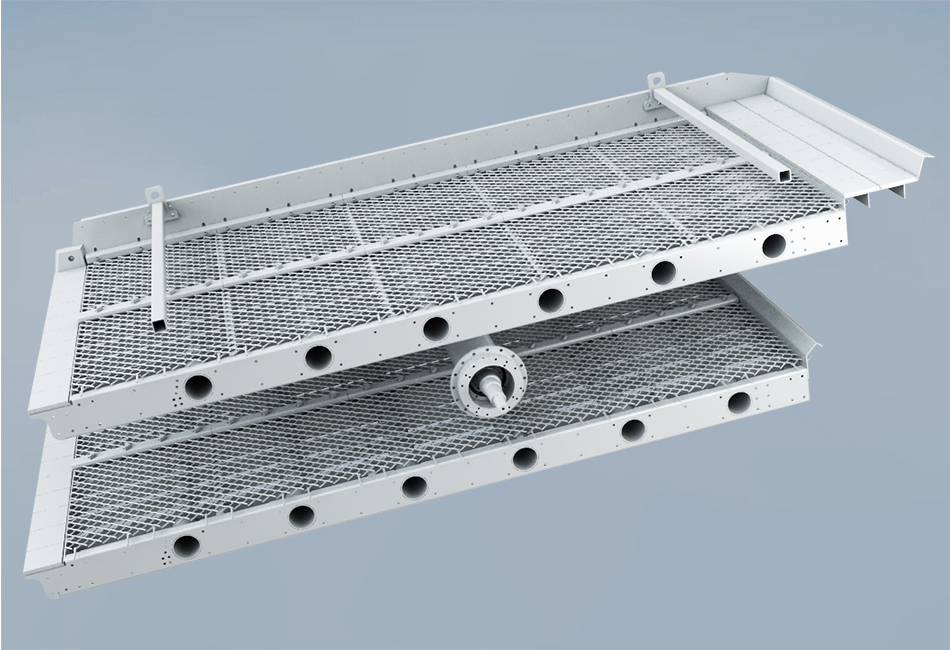

The circular vibrating screen machine is mainly composed of screen box, screen screen, vibrator, damping spring device and underframe. Cylinder type eccentric shaft exciter and eccentric block are used to adjust the amplitude. The vibrator is installed on the side plate of the screen box. The motor drives the rotation through the triangle belt to produce centrifugal inertia force and force the screen box to vibrate. The side plate of the screen machine is made of high-quality steel plate, and the side plate is connected with the beam and the base of the vibration exciter with high-strength bolts or ring groove rivets. The vibrator is installed on the side plate of the screen box, and the motor drives the rotation through the coupling to produce centrifugal inertia force to force the screen to vibrate.


Circular vibrating screenAdvantage

1. It is mainly composed of screen box, vibration exciter, suspension (or support) device and motor. The motor drives the main shaft of the vibration exciter to rotate through the triangle belt. Due to the centrifugal inertia force of the unbalanced weight on the vibration exciter, the screen box is vibrated. Different amplitudes can be obtained by changing the eccentric weight of the exciter.

2. Due to the strong vibration of the screen box, the phenomenon of material blocking the screen hole is reduced, and the sieve has higher screening efficiency and productivity.

3. The structure is simple and the screen surface can be easily removed and replaced.

4. Less electric energy is consumed in screening per ton of materials.


Circular vibrating screenWorking Principle

The motor makes the eccentric block of the vibration exciter rotate at high speed through the triangle belt, which excites the screen box to produce a certain amplitude circular motion. The materials on the screen are continuously thrown by the impulse from the screen box on the inclined screen surface. When the materials meet the screen surface, the particles smaller than the screen hole are penetrated through the screen, so as to realize the classification.




Circular vibrating screenApplication Scope

Circular vibrating screenTechnical Parameter

Model

Sieve specification (mm)

layer

Mesh size (mm)

Max feeding size (mm)

Processing capacity (t/h)

Moto power (kw)

Vibrating Frequency (r/min)

Double amplitude (mm)

2YK1237

1200X3700

2

3-50

200

30-100

5.5

970

5-9

3YK1237

1200X3700

3

3-50

200

30-100

7.5

2YK1548

4800X1500

2

3-100

400

30-275

15

3YK1548

4800X1500

3

3-100

30-275

15

2YK1848

4800X1800

2

3-100

56-330

18.5

3YK1848

4800X1800

3

3-100

56-330

18.5

4YK1848

4800X1800

4

3-80

56-330

22

2YK1860

6000X1800

2

3-100

65-586

18.5

3YK1860

6000X1800

3

3-100

65-586

22

4YK1860

6000X1800

4

3-100

65-586

30

980

2YK2160

6000X2100

2

3-100

81-720

22

980

3YK2160

6000X2100

3

3-100

81-720

30

970

4YK2160

6000X2100

4

3-100

81-720

37

980

2YK2460

6000X2400

2

3-150

100-810

22

970

3YK2460

6000X2400

3

3-150

100-810

30

980

4YK2460

6000X2400

4

3-150

150-850

37

980

2YK2470

7000X2400

2

3-100

180-900

30

980

3YK2470

7000X2400

3

3-100

180-900

37

980

4YK2470

7000X2400

4

3-100

180-900

45

980

2YK2480

8000X2400

2

3-150

190-940

30

980

3YK2480

8000X2400

3

3-150

190-940

37

980

4YK2480

8000X2400

4

3-150

190-940

45

980

2YK3070

7000X2400

2

3-100

220-1000

37

980

3YK3070

7000X2400

3

3-150

220-1000

45

980

4YK3070

7000X2400

4

3-150

220-1000

55

980
