Your current location:Home>Product>Crushing station series
Direct deal Quality Assurance Quick response Service worry free
Production capacity:92-220KW
Feed particle size:60-650t/h
Applicable materials:Limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc.
Do you need help? WhatsApp: 8613592531525
info@trifumac.com Hotline:+8613592531525

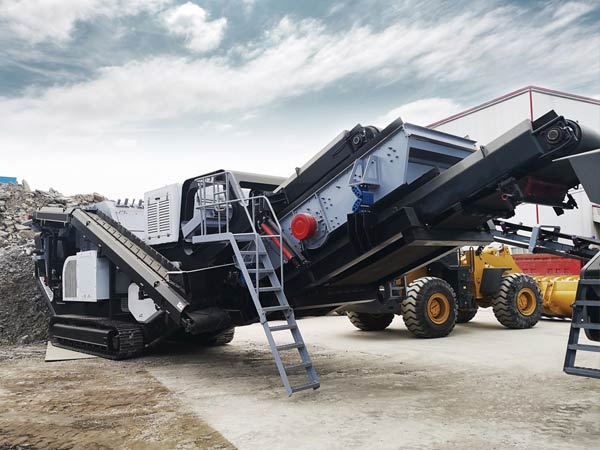

Crawler type hydraulic driving mobile crusher is the mobile crushing and screening equipment with full hydraulic driving crawler vehicle chassis to meet the market demand. The crawler mobile crusher is mainly used for the processing of materials that often need to be relocated, such as metallurgy, chemical industry, building materials, hydropower and so on, especially for the operation of mobile stones such as expressways, railways, hydropower projects, etc. users can adopt various configuration forms according to the type, scale and requirements of processed raw materials.
1. The power system with sufficient power, reliable performance and excellent performance adopts Cummins diesel engine with low fuel consumption, low noise and reliable performance, providing a reliable, economic and environmental protection power source. The engine can be equipped with military low-temperature preheating start-up device, so that the equipment can be easily started in - 25C ° low-temperature environment.
2. The ship type structure has strong adaptability, all steel ship structure chassis has the characteristics of high strength, low grounding pressure, and has good adaptability to mountain and wetland.
3. Large driving force, strong torque, torque travel motor, large driving force and high reliability. The walking system adopts full power variable open hydraulic system with excellent performance and high reliability. It can make full use of the power of the engine. The main hydraulic components (pumps, valves, etc.) are imported from Japan to provide reliable power guarantee for the walking system.
4. Stepless variable speed travel imported servo pilot operation system, easy to operate, accurate control, can realize stepless variable speed travel.
5. Mature crushing equipment crushing and screening equipment are the mature products independently produced by the company, with compact structure, stable performance and reliability.
6. Hybrid energy device, hybrid pressure energy device and dual power intelligent transfer switch can be selected, which can make full use of local power resources, save operation cost and reduce CO2 and NOx emissions. In case of power interruption or under voltage, the diesel generator will be automatically switched to generate electricity to ensure the continuous operation of the equipment.
The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.
model | Equipment configuration | Adjustable discharge port | yield | External dimension |
SL15L | ZSW3896+LF150 | 40-100 | 100-200 | 13050 x 2950 x 3100 |
SL25L | ZSW4211+LF250 | 50-120 | 200-400 | 12750 x 3000 x 3700 |
SL35L | ZSW4213+LF350 | 50-200 | 300-500 | 14360 x 3000 x 3800 |
SE69L | ZSW3896+PE69 | 60-125 | 100-180 | 12500 x 2950 x 3000 |
SC96L | ZSW3896+SC96 | 60-175 | 120-455 | 13500 x 3400 x 2800 |
SC106L | ZSW4211+SC106 | 70-200 | 155-580 | 14400 x 3600 x 3000 |
