Wet and dry ball mill

　　The ball mill is the key equipment for crushing the material after it is broken. This type of mill is loaded into its cylinder a certain number of steel balls as a grinding medium. It is widely used in cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal beneficiation and glass ceramics and other production industries, for a variety of ores and other grainable materials dry or wet grinding, according to different ore discharge methods, can be divided into two types of lattice and overflow type.

　　1, save energy There is a drive and grinding energy matching, can greatly save energy.

　　2, high-yield and energy-saving discharge port design is reasonable, customers can choose iron remover according to their own needs.

　　3, higher bearing cylinder, media, silo plate, discharge grate plate with high quality original.

　　4, green ultra-fine ball mill and classifier to form a closed system of negative pressure transport, no dust.

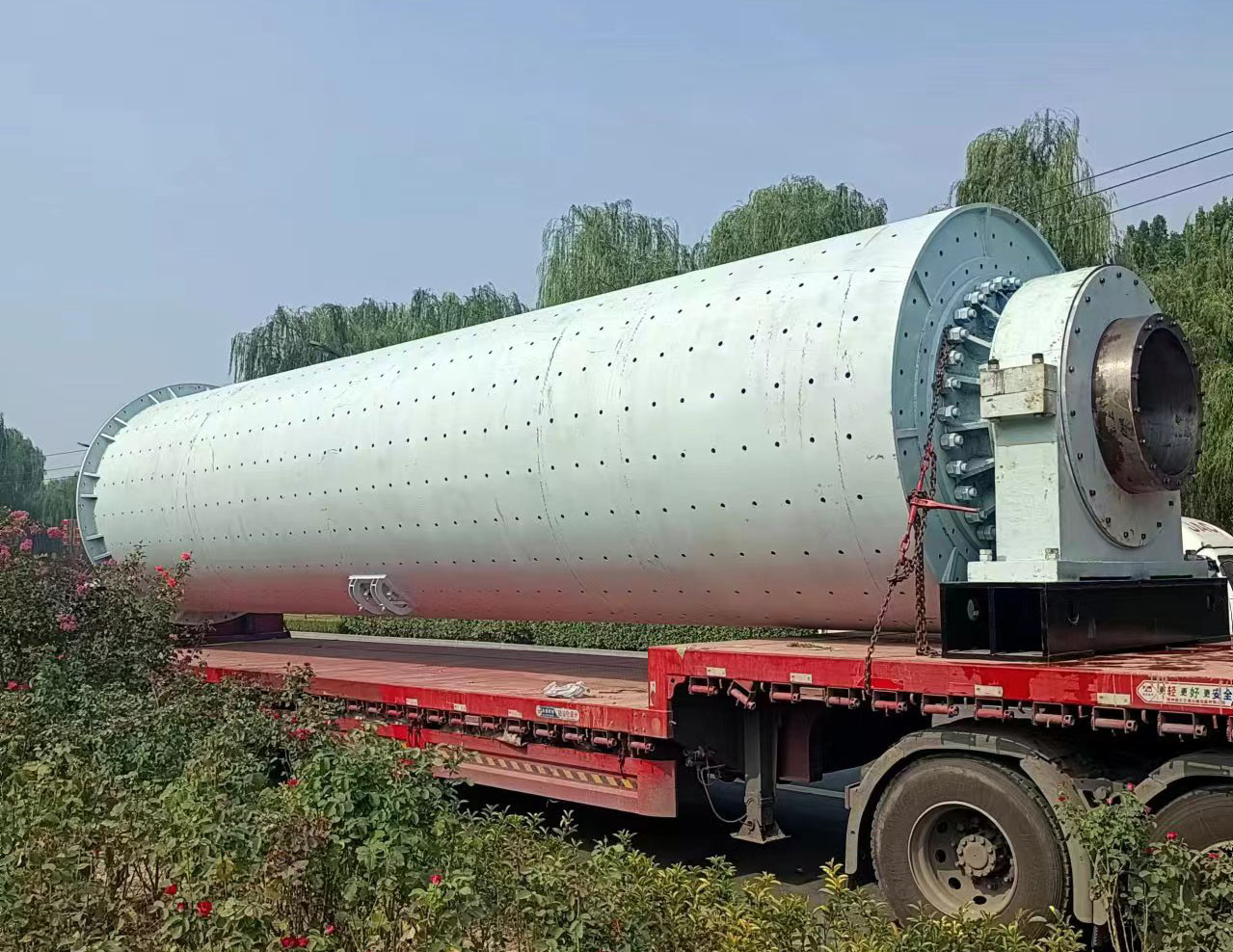

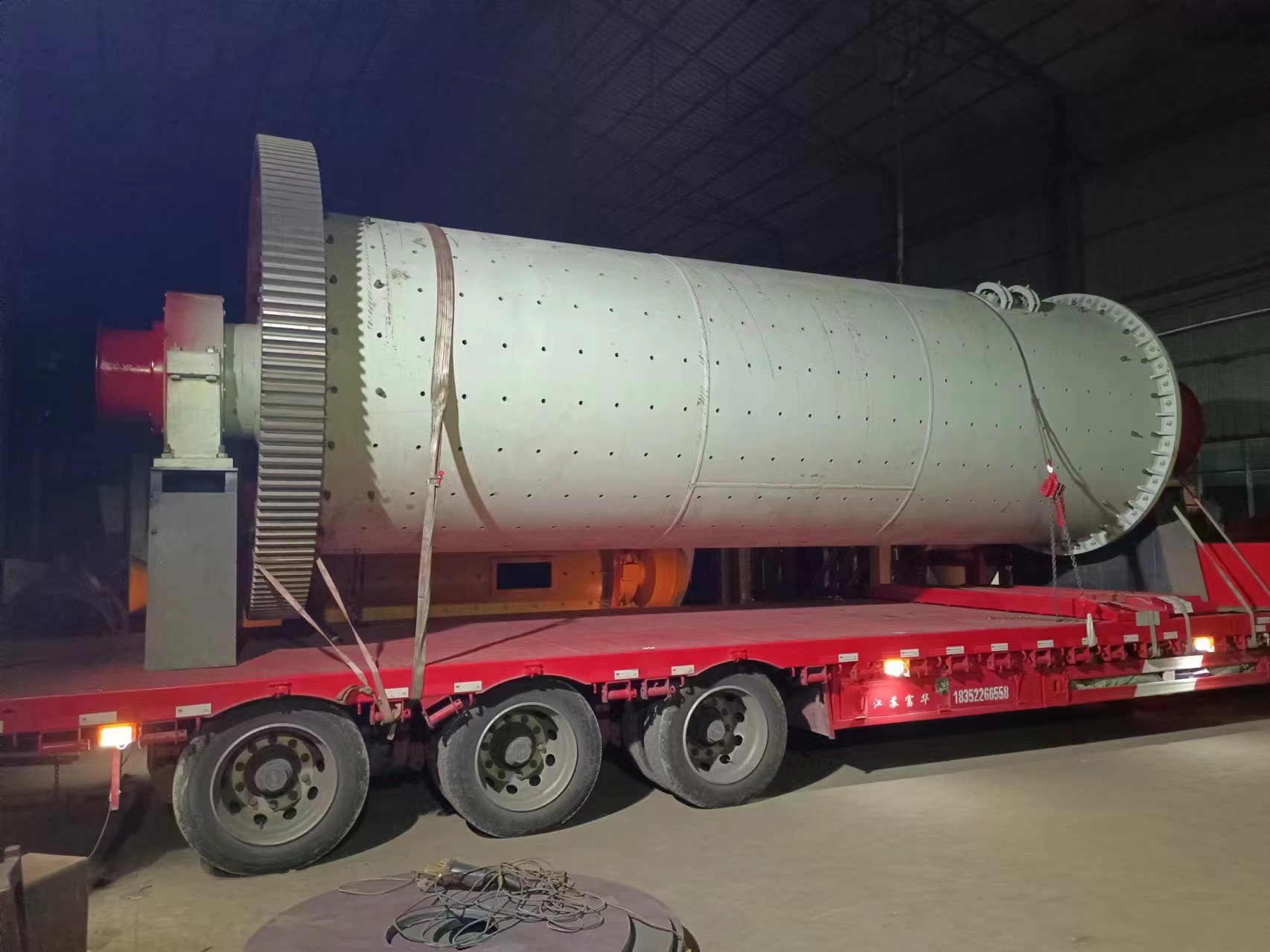

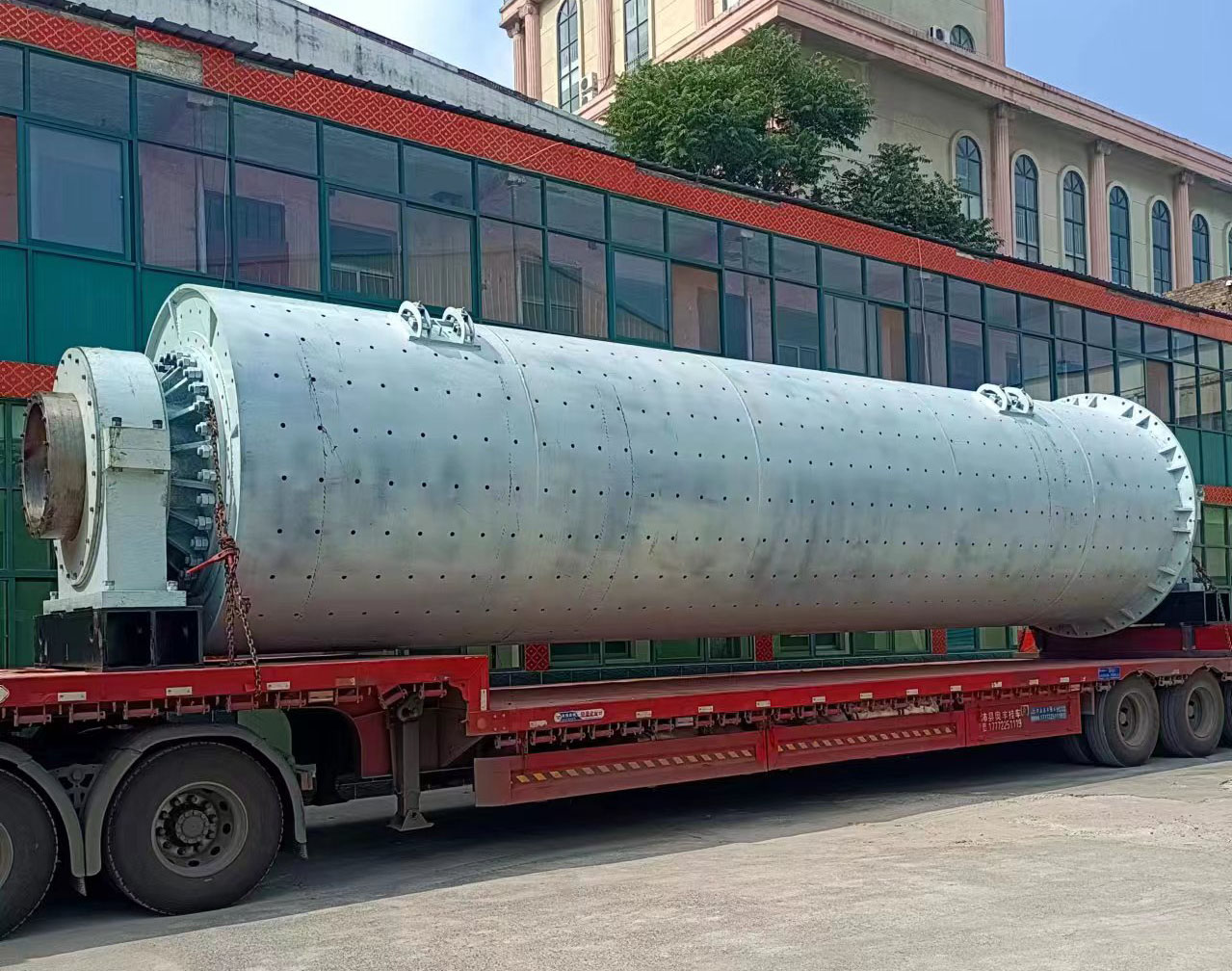

　　The ball mill is a horizontal cylindrical rotary device, driven along the outer gear, two bins, grid type ball mill. The material is uniformly fed into a bin of the mill by the feeding device through the feeding hollow shaft. There are stepped lining plates or corrugated lining plates in the bin, and steel balls of different specifications are installed inside. The centrifugal forcegenerated by the rotation of the cylinder will bring the steel balls to a certain height and then fall down, which will have a pounding and grinding effect on the material. After the material is coarse ground in the first bin, it enters the second bin through the single compartment plate, which is inlaid with a flat liner plate and contains a steel ball to further grind the material. The powder is discharged through the discharge grate to complete the grinding operation.
