Your current location：Home>Product>Crushing series
Direct deal Quality Assurance Quick response Service worry free
Production capacity：1-1000t/h
Feed particle size：≤1020mm
Applicable materials：limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, pebble, pozzolana, Iron ore, copper ore, gold ore, manganese ore, etc.
Do you need help? WhatsApp: 8613592531525
info@trifumac.com Hotline：+8613592531525

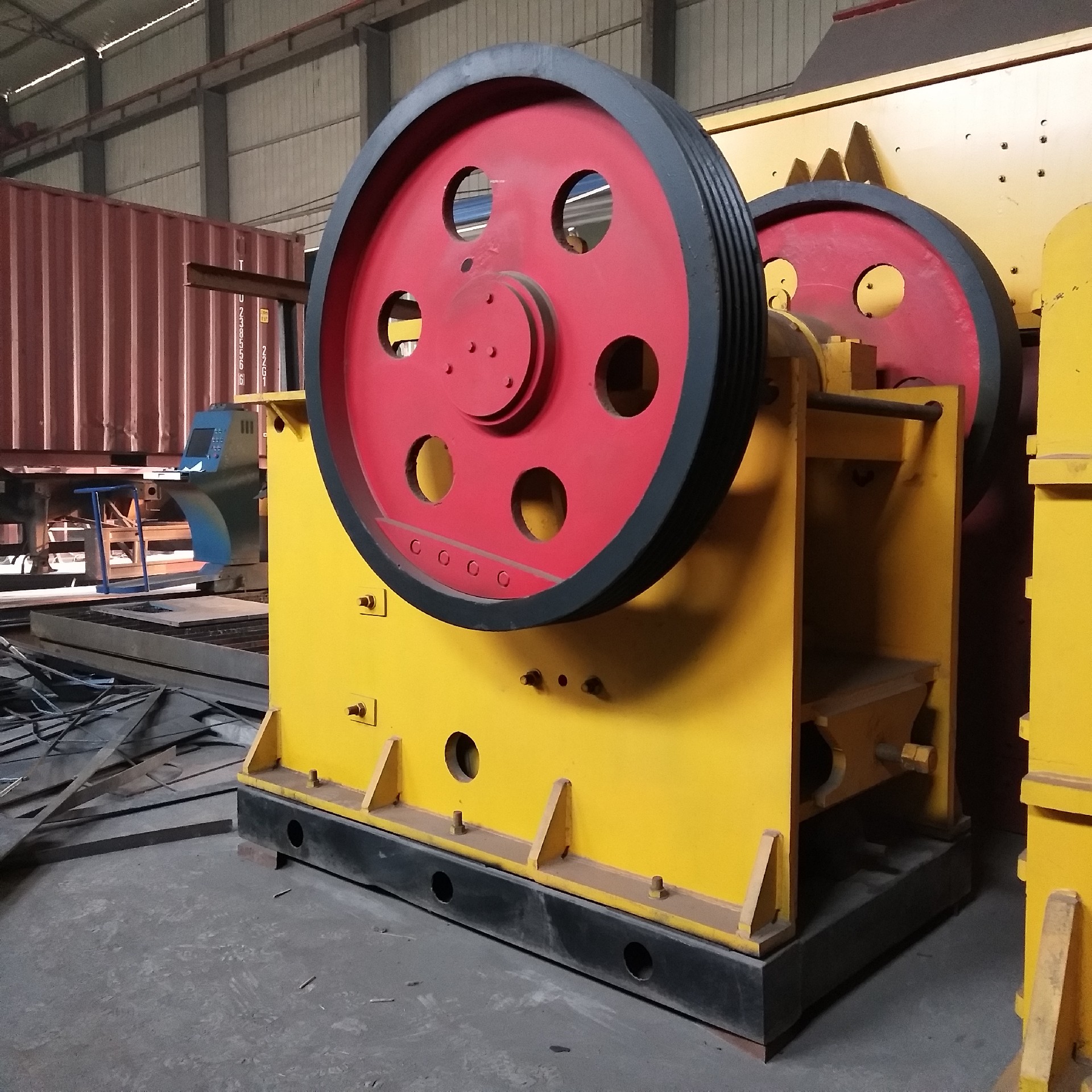

Jaw crusher is widely used in ore crushing, building aggregate processing and other industries. With the continuous development of production technology, advanced manufacturing technology, high-quality production materials, further consolidate the important position of jaw crusher in the field of mining machinery.
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it can meet various requirements of customers.
3. Lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
4. Simple structure, reliable performance, low maintenance cost.
5. Little dust and low noise.

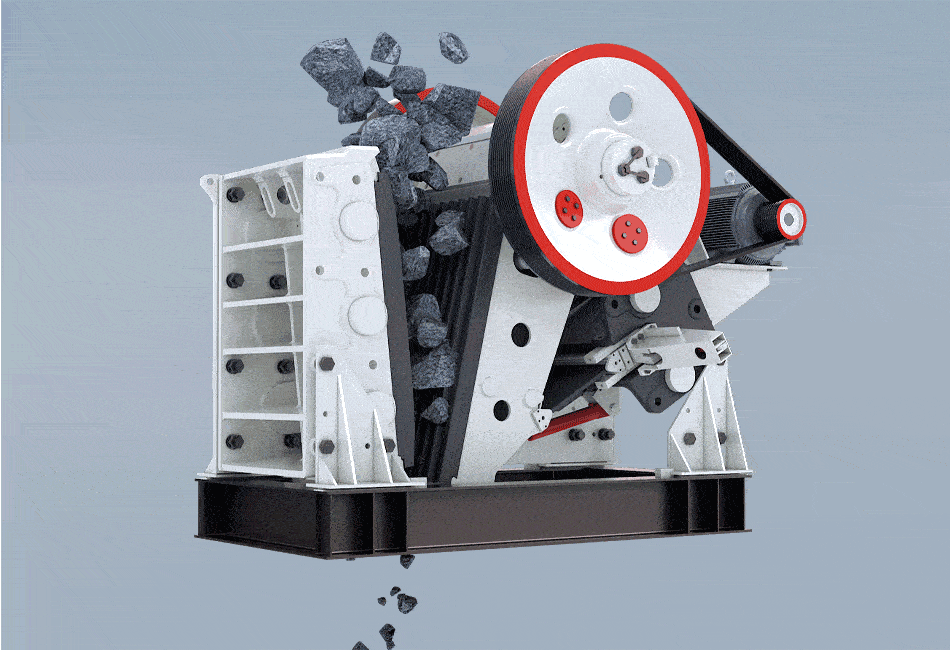

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Model | Feed opening (mm) | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE250×400 | 250X400 | 200 | 20-60 | 5-20 | 15(20) | 1150×1275×1240 | 2.8 |
PE250x1000 | 250X1000 | 210 | 15-50 | 15-50 | 30(40) | 2790x2670x1380 | 6.5 |
PE400×600 | 400X600 | 350 | 40-100 | 15-60 | 30(40) | 1700×1732×1653 | 6.5 |
PE500×750 | 500X750 | 425 | 50-100 | 50-100 | 55(75) | 2035×1921×2000 | 10.3 |
PE600×900 | 600X900 | 500 | 65-160 | 60-130 | 75(100) | 2290×2206×2370 | 16 |
PE750×1060 | 750X1060 | 630 | 80-140 | 110-250 | 110(150) | 2620×2302×3110 | 27 |
PE900×1200 | 900X1200 | 750 | 100-200 | 160-380 | 130(175) | 3789×2826×3025 | 46.5 |
PE1000×1200 | 1000X1200 | 850 | 200-300 | 315-550 | 130(175) | 3889×2826×3025 | 56 |
PE1200×1500 | 1200X1500 | 1000 | 150-350 | 400-800 | 200(270) | 4930X3148X3560 | 88 |
