Jaw mobile crushing station

Direct deal Quality Assurance Quick response Service worry free

Jaw mobile crushing station

Production capacity:85-650t/h

Feed particle size:≤800mm

Applicable materials:River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

Jaw mobile crushing stationIntroduce

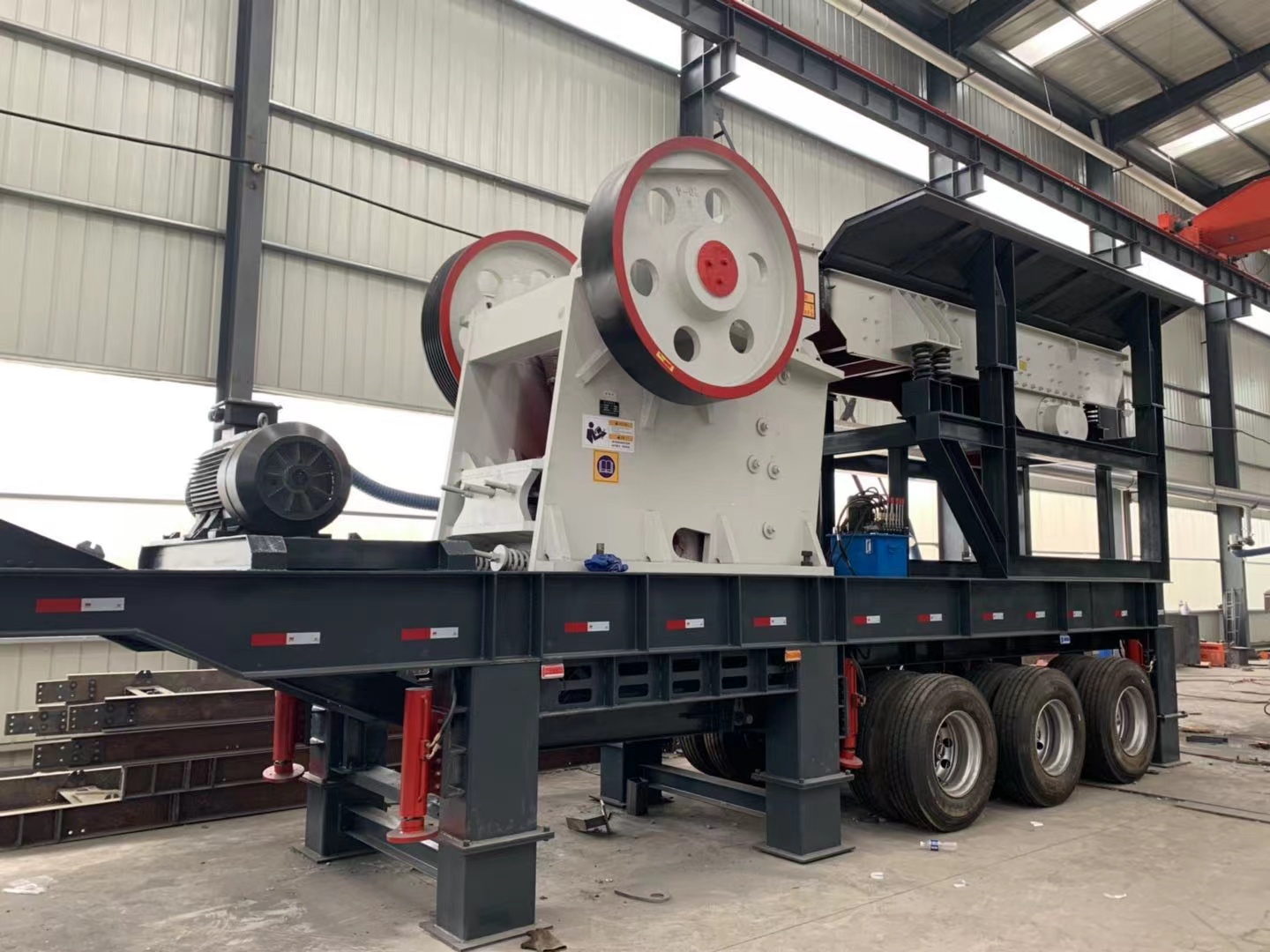

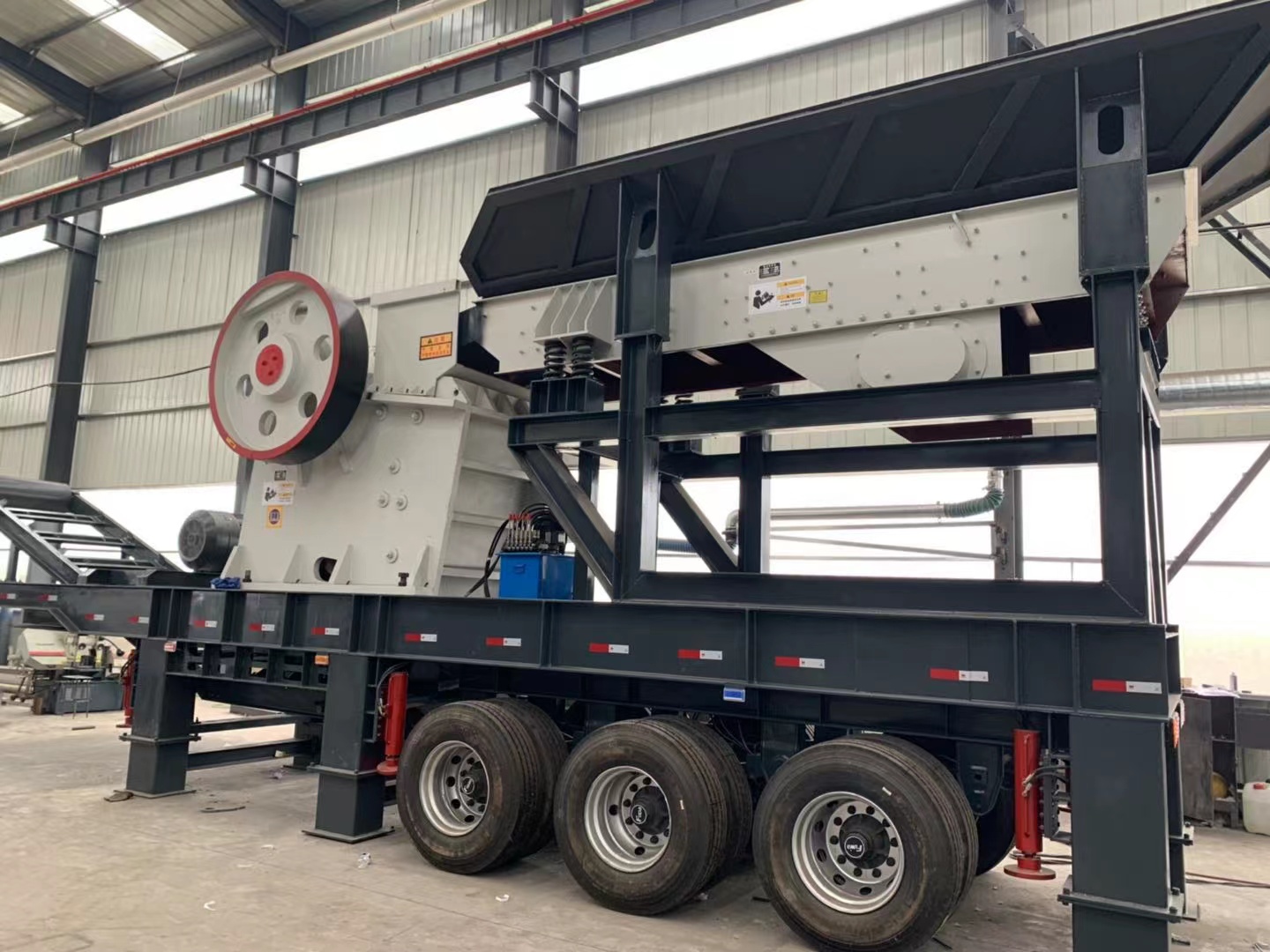

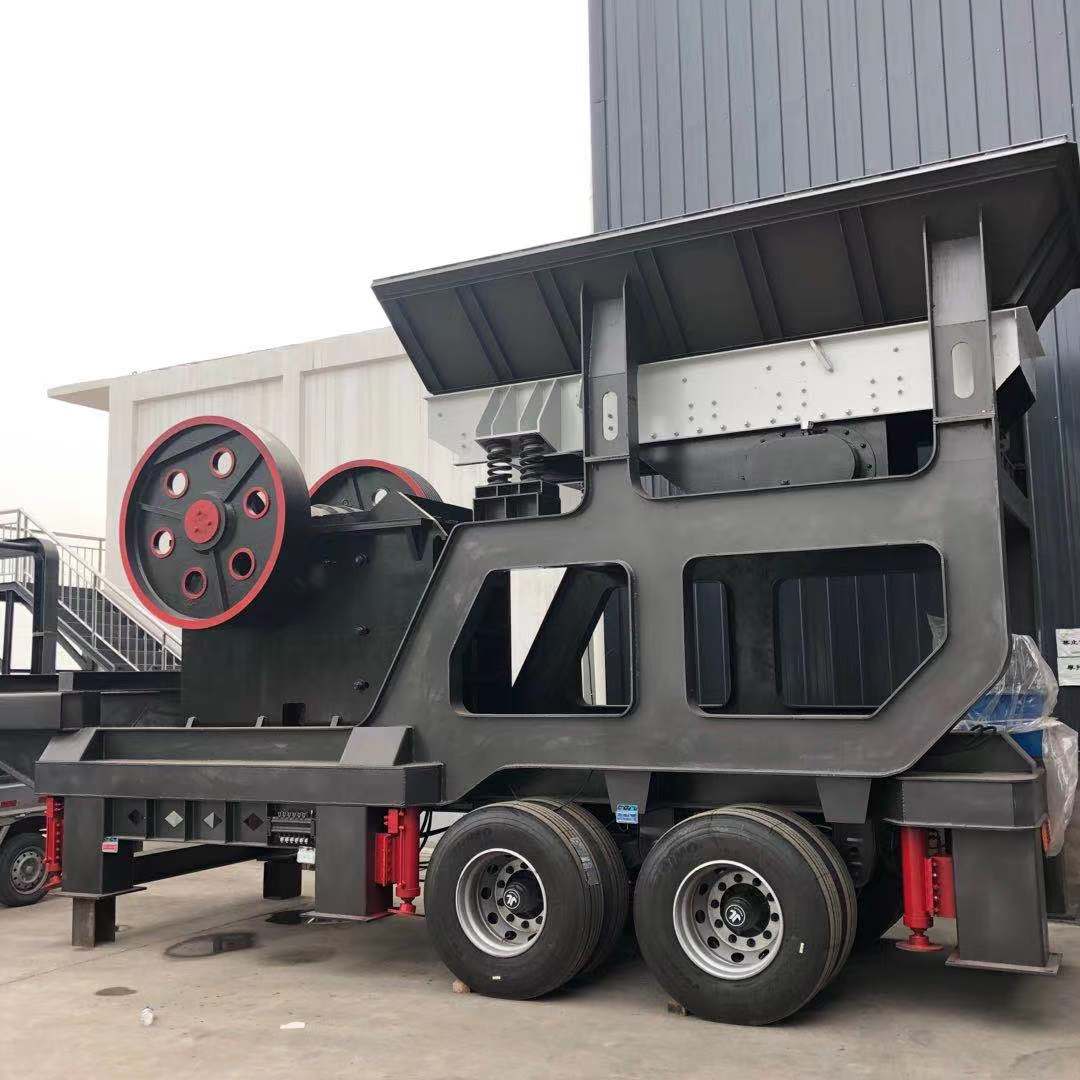

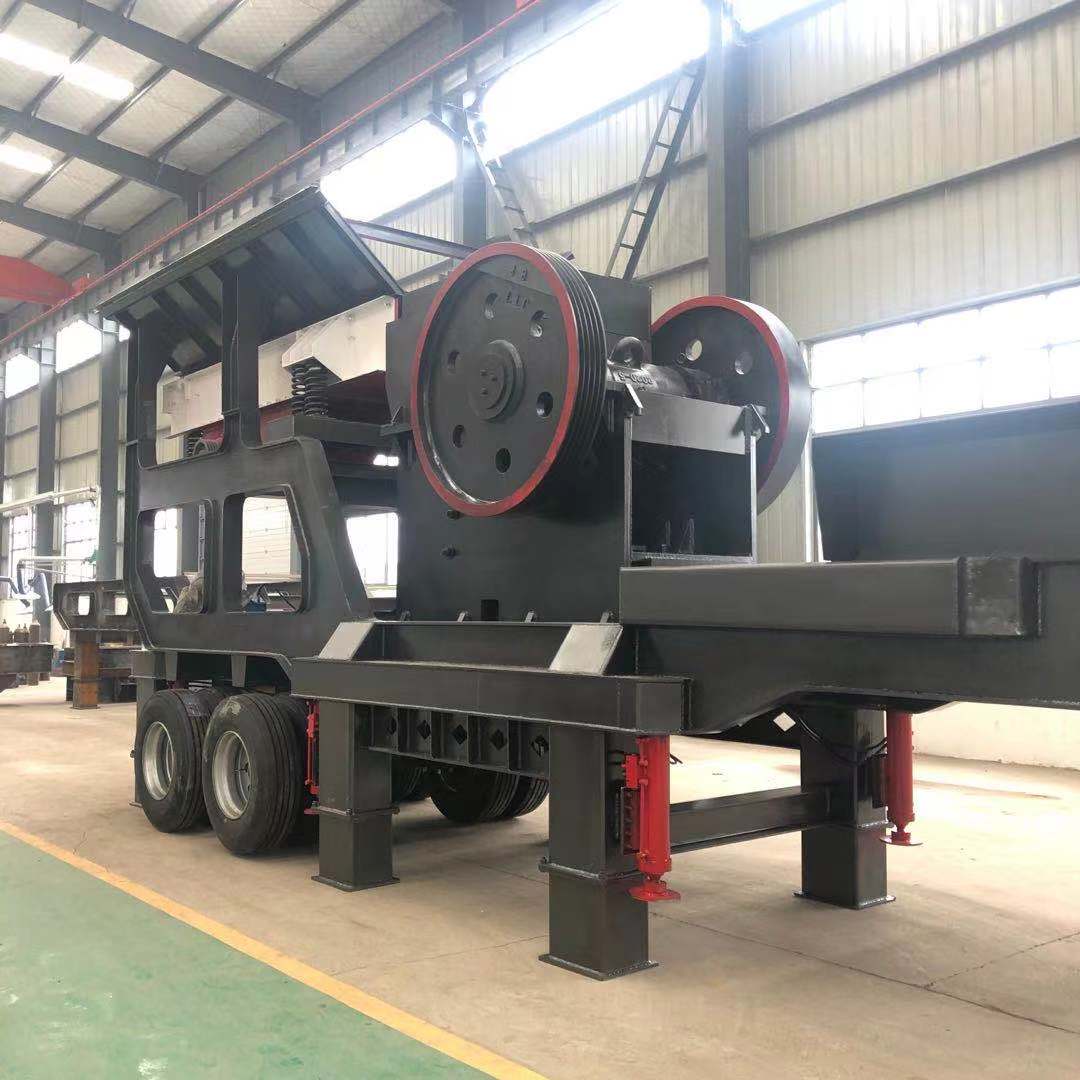

  Jaw mobile crushing station is mainly composed of feeder, jaw crusher and belt conveyor, with the output of 85 ~ 650 tons per hour. The machine adopts integrated group operation mode, which can work alone, eliminates the complex site infrastructure and auxiliary facilities installation operation of separated components, and reduces the man hour consumption. Suitable for construction waste treatment, construction waste crushing, etc.


Jaw mobile crushing stationAdvantage

1. Unit integration. It can be operated directly, eliminating tedious infrastructure installation and man hour consumption.

2. It adopts ship type steel frame structure, low chassis, light weight, reasonable volume control, small turning radius, flexible and fashionable modeling, which can meet the needs of customers to the maximum extent.

3. The feeding guard board is hydraulically lifted, convenient for loading and unloading, convenient for fixing, stable and reliable.

4. The feeding guard board adopts a hierarchical double-layer structure, which provides a prerequisite for the expansion and personalized widening of the guard board.

5. The belt conveyor can be controlled to adjust the height and height. The iron remover is equipped with automatic lifting adjustment.


Jaw mobile crushing stationWorking Principle

  The materials are evenly transported to the crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.



Jaw mobile crushing stationApplication Scope

Jaw mobile crushing stationTechnical Parameter

Model

SMC600

SMC750

SMC900

SMC1060

SMC1200

SMC1300PEX

Transport size

Length(mm)

8600

9600

11097

13300

15800

9460

Width(mm)

2520

2520

3759

2900

2900

2743

Height(mm)

3770

3500

3500

4440

4500

3988

Alex weight(kg)

10121

14500

21380

38430

64000

14730

King pin weight(kg)

5118

7500

10890

19450

34000

10490

Jaw crusher

Model

PE

PE

PE

PE

PE

PEX

Feed opening(mm)

400X600

500X750

600X900

750X1060

900X1200

300X1300

Discharging hole setting range(mm)

40-100

50-100

65-180

80-180

95-225

20-90

Capacity(t/h)

15-60

40-110

90-180

110-380

220-450

30-105

Feeder

Feed hopper volume

3

4

7

10

10

3

Hopper width

2200

2500

3000

3000

3000

2200

Model

ZSW6520

ZSW8530

ZSW9638

ZSW1142

ZSW1349

ZSW8530

Belt conveyor

Model

B650X6

B800X7

B1000X8

B1000X11

B1200X13

B1000X7
