Flotation machine

　　Flotation machine is short for floating separator, is a mechanical equipment to complete the flotation process. Flotation method is a kind of mineral processing method used in mineral processing production, by stirring and aerating, some of the ore particles are selectively fixed on the bubble; Float to the surface of the pulp is scraped out to form a foam product, and the rest is retained in the pulp to achieve the purpose of separating minerals. Flotation machine is mainly suitable for the separation of gold, silver, copper, iron, lead, zinc, molybdenum, nickel, aluminum and other metal minerals, can also be used for the rough selection and selection of ferrous and non-metallic metals, is an indispensable important equipment in mineral processing production line.

　　1. Double blade circulation, flotation effect is good The impeller of the flotation machine is equipped with backward double-sided leaves, which can realize double circulation of the slurry in the tank and is conducive to the suspension of coarse minerals.

　　2. Horizontal configuration, easy to change process Each tank has three functions of suction, suction and flotation, forming its own flotation circuit without any auxiliary equipment, horizontal configuration, easy to change
process.

　　3. Large suction capacity, small energy consumption mechanical stirring, self-suction, self-suction pulp; The clearance between the impeller and the cover plate is large, the suction capacity is large, and the energy consumption
is small.

　　4. Wear resistant parts, low maintenance cost, low circular speed of the impeller, long life of the wearing parts; And there are high wear-resistant parts around the parts to effectively protect the tank from wear, and the maintenance cost is low.

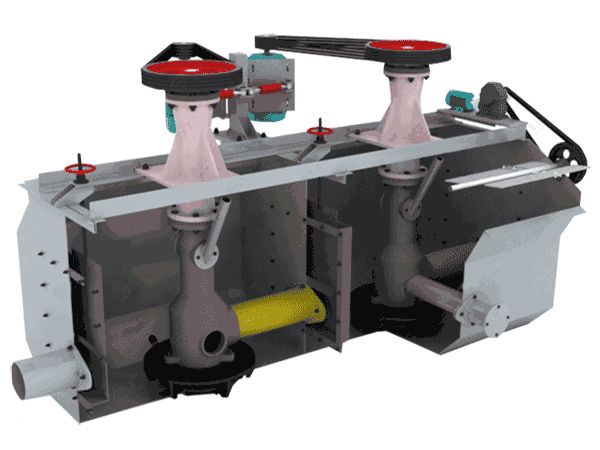

　　The flotation machine produced by the company is suitable for the separation of non-ferrous metals, and can also be used for the separation of non-metals such as coal fluorite and talc. The flotation machine is driven by the motor triangle drive impeller rotation, resulting in centrifugal effect to form negative pressure, on the one hand, it inhales enough air to mix with the pulp, on the other hand, it mixes the pulp and minerals, and at the same time, it refined the foam so that the minerals bonded to the foam and floated to the pulp surface to form a mineralized foam. Adjust the height of the gate, control the liquid level, so that the useful foam is scraped out by the scraper.
