Your current location:Home>Product>Mineral processing equipment
Direct deal Quality Assurance Quick response Service worry free
Production capacity:10-280t/h
Feed particle size:The magnetic separator is suitable for a variety of minerals with particle size below 3mm, and is also used for iron removal of coal, non-metallic ore, building materials and other materials.
Applicable materials:Iron ore, hematite, pyrrhotite, limonite, calcined ore, ilmenite, magnetite, copper ore, gold ore, coal, quartz stone, etc.
Do you need help? WhatsApp: 8613592531525
info@trifumac.com Hotline:+8613592531525

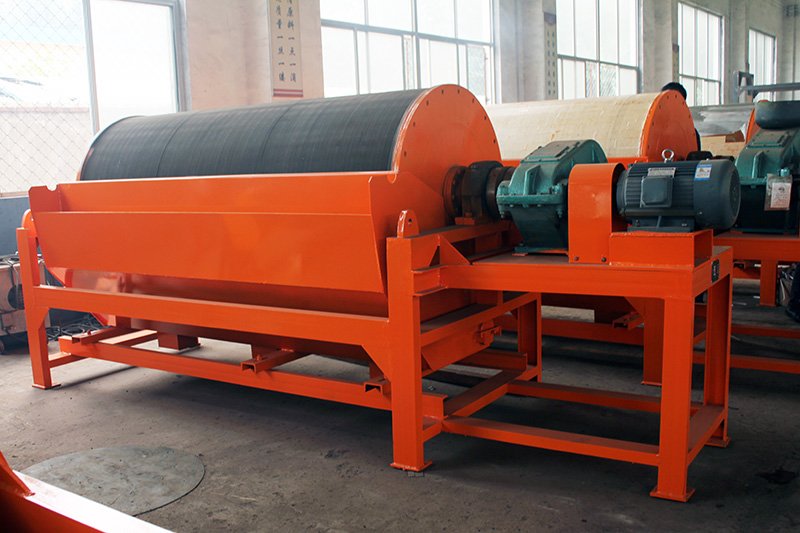

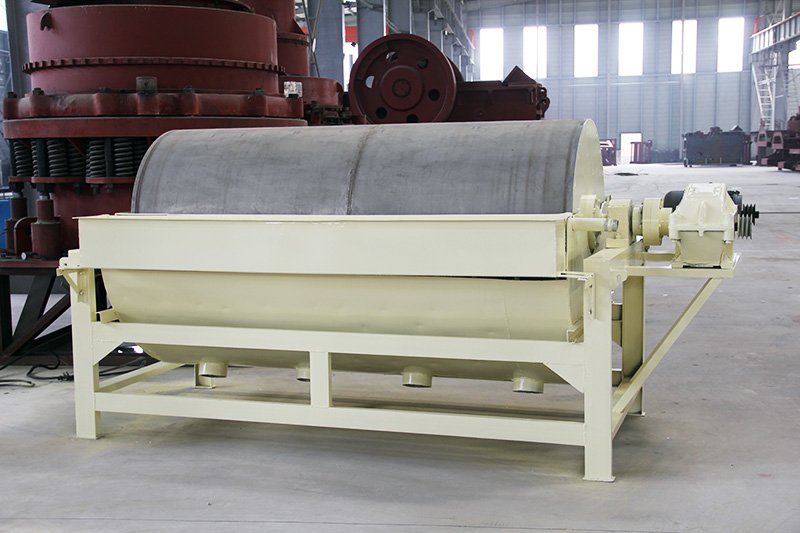

Magnetic separator is one of the most widely used and versatile machines in the industry, which is suitable for re-using the iron powder in the powder particle. Magnetic separator is widely used in the wood industry, mining, kiln industry, chemical, food and other factories in the recovery of resources. The magnetic separator is suitable for wet or dry magnetic separation of manganese ore, magnetite, pyrrhotite, calcined ore, ilmenite and other materials with particle size below 3mm, and is also used for iron removal of coal, non-metallic ore, building materials and other materials. The magnetic system of the magnetic separator is mostly made of high-quality ferrite materials or composite with rare earth magnetic steel, and the average magnetic induction intensity of the previous cylinder is 800-4000mT. Due to the development of technology, the magnetic separator can be made into a roller shape, and the magnetic field strength has also been increased to 8000mT.
1. Simple structure has the advantages of simple structure, easy operation and easy maintenance.
2. A multi-purpose machine, processing capacity of large fine particles weak magnetic minerals, can get better sorting indicators
3. Good process, energy saving according to user needs, can provide a variety of different types of downstream, semi-counter-current, counter-current and other magnetic separation.
4. Easy maintenance, small maintenance, easy operation and maintenance; Unique centralized lubrication system, faster lubrication, less maintenance work.
After the slurry flows into the tank through the feed box, the ore particles enter the tank in a loose state under the action of the water flow of the feed pipe. In the action of the magnetic field, the magnetic agglomeration of the magnetic particles forms a "magnetic group" or "magnetic chain", "magnetic group" or "magnetic chain" in the pulp by the magnetic force, the magnetic pole movement, and is adsorbed on the cylinder. Because the polarity of the magnetic pole is alternately arranged along the direction of the cylinder rotation, and fixed at work, the "magnetic group" or "magnetic link" in the rotation with the cylinder, due to the magnetic pole alternations and magnetic stirring phenomenon, is included in the "magnetic group" or "magnetic link" in the gangue and other non-magnetic minerals fall off in the flip, and eventually be sucked on the surface of the cylinder "magnetic group" or "magnetic link" is the concentrate. The concentrate is transferred with the cylinder to the magnetic edge of the magnetic system where the magnetic force is weak, and is unloaded into the concentrate tank under the action of the washing water flow from the discharge pipe. If it is a full magnetic roller, the discharge is carried out by a brush roller. Non-magnetic or weakly magnetic minerals are left in the slurry with the slurry discharge tank, that is, tailings.
Model | Barrel diameter (mm) | Barrel length (mm) | Cylinder speed (r/min) | Feed size (mm) | Processing capacity (t/h)) | Power (kw) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
