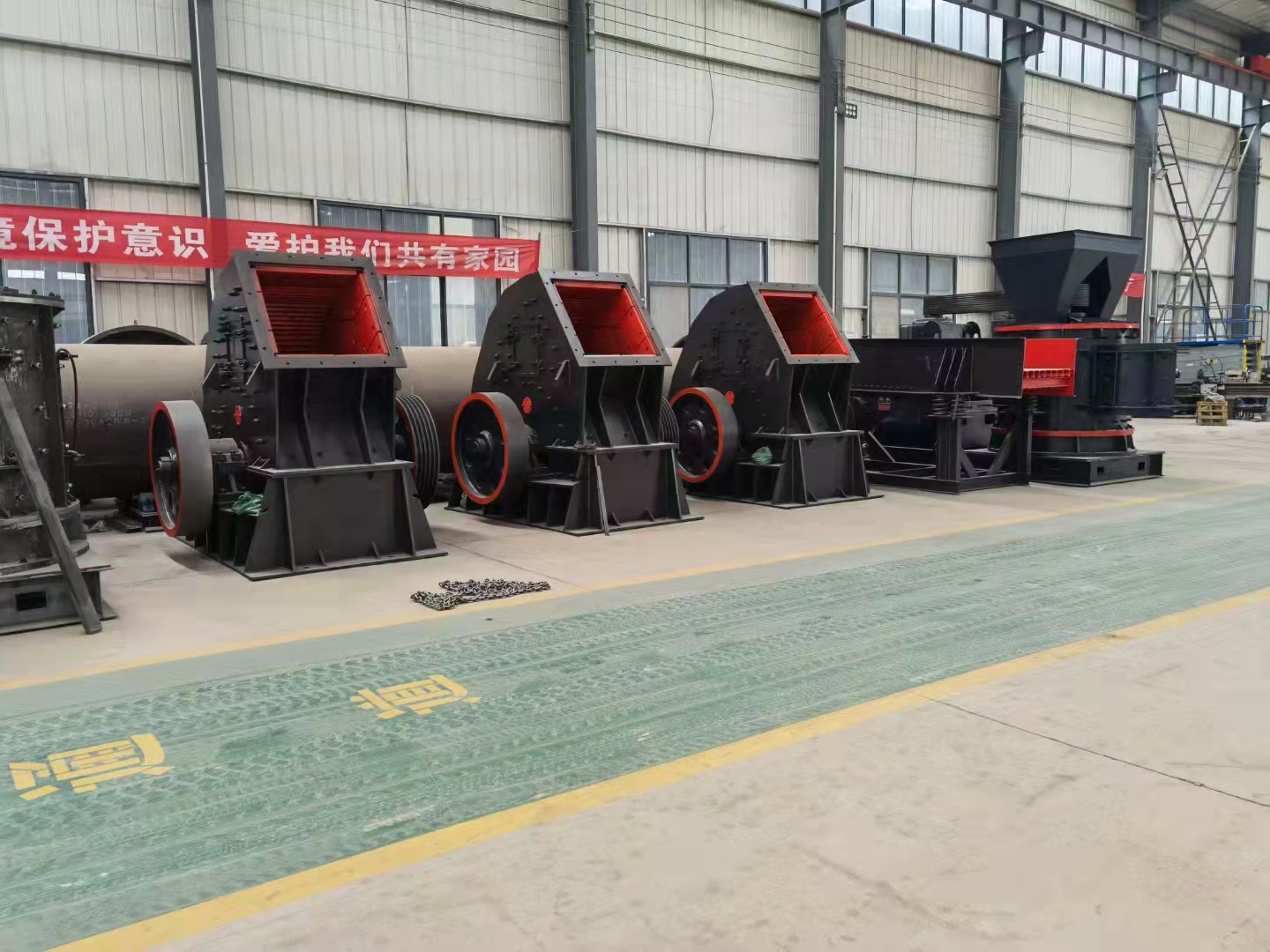

Heavy hammer crusher

Direct deal Quality Assurance Quick response Service worry free

Heavy hammer crusher

Production capacity:100-3200 t/h

Feed particle size:<1700 mm

Applicable materials:Bluestone, river pebble, granite, basalt, iron ore, limestone, quartz, coal gangue, construction waste, etc

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

Heavy hammer crusherIntroduce

 Heavy hammer crusher, also known as hammer crusher, has the advantages of one-time forming, large crushing ratio, high production capacity, uniform product particle size, etc. it is suitable for fine crushing limestone, coal or other brittle materials with medium hardness in metallurgical, building materials, chemical industry, water and electricity and other industrial departments. We are a crushing equipment manufacturer specializing in R & D, design and production of heavy hammer crushers. The price of Hammer Crushers is reasonable, and the product structure is advanced With reliable performance and low energy consumption, it has formed a series of products, which are deeply loved by new and old customers.

Heavy hammer crusherAdvantage

 Heavy hammer crusher uses impact to crush materials. The main working part is the rotor with hammer head, which is composed of main shaft, disc, pin shaft and hammer head. The motor drives the rotor to rotate at high speed in the crushing chamber. The materials enter the machine from the upper feeding port and are crushed by the impact, impact and grinding of the high-speed hammer. The lower part of the rotor is provided with a sieve plate. The particle size smaller than the size of the sieve hole in the crushed material is discharged through the sieve plate, and the coarse particle size larger than the size of the sieve hole is blocked on the sieve plate, which continues to be hit and ground by the hammer, and is discharged through the sieve plate.

Heavy hammer crusherWorking Principle

The heavy hammer crusher can be formed at one time without secondary crushing and shaping process, which can reduce the cost by about 40%. It has the advantages of large crushing ratio, high output, uniform particle size of finished products, low energy consumption and high environmental protection.


Heavy hammer crusherApplication Scope

Heavy hammer crusherTechnical Parameter

modelSpecificationsfeed sizemm)feed port size(mm)throughput(t/h)motor power(kw)Overall dimension(mm)
PCZ0706700x570618x510≤4007550-701950x1340x1480
PCZ0808800x750780x610≤50013280-1002280x1790x1670
PCZ0910900x10001070x750≤600150-200(110kw-4)*22600x2200x2050
PCZ10121000x11801255x810≤200250-300(132kw-4)*22800x2400x2300
PCZ12131200x12801350x900≤200300-350(160kw-4)*22970x2625x2580
PCZ12161270x14901530x920≤250400-500(200kw-4)*23070x2840x2580
PCZ12201220x19502000x920≤250500-700(250kw-4)*23080x2280x2580
PCZ16221580x21502290x960≤300600-900630kw-64095x3495x2960
