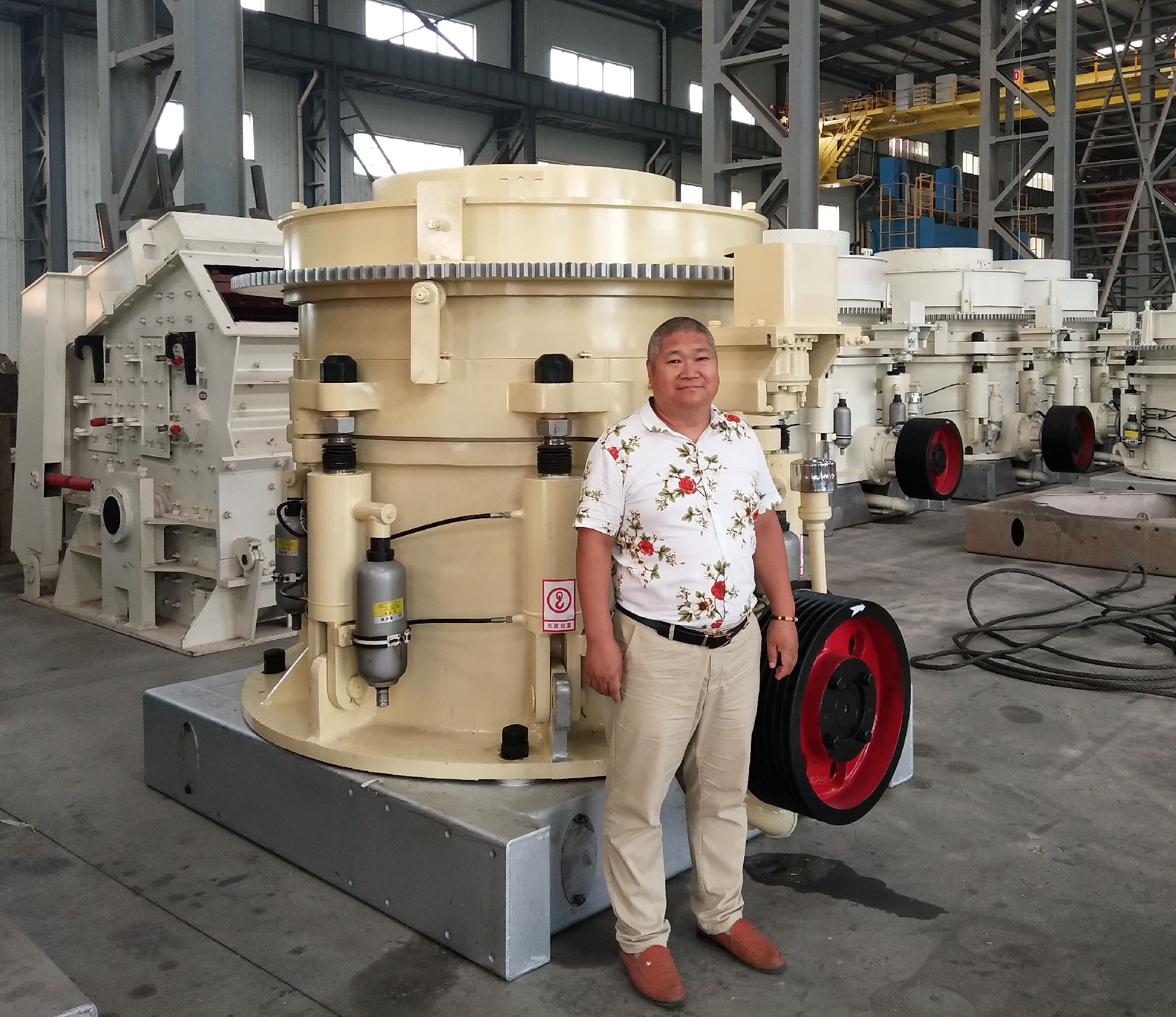

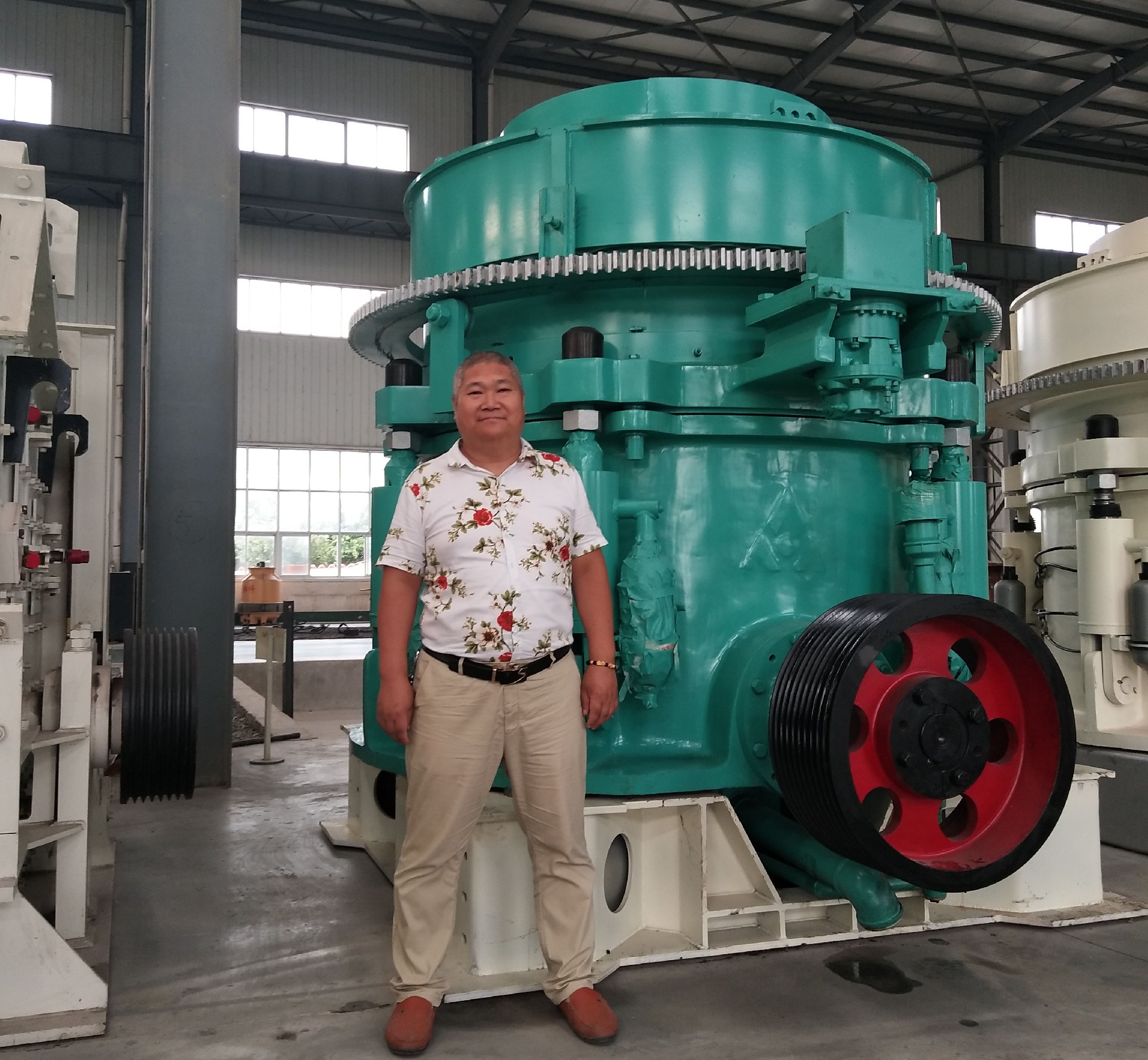

HPT Hydraulic Cone Crusher

Direct deal Quality Assurance Quick response Service worry free

HPT Hydraulic Cone Crusher

Production capacity:50-1200t/h

Feed particle size:10-350mm

Applicable materials:River pebble, limestone, dolomite, granite, rhyolite, diabase, basalt, ferrous metal ore, etc

客服 Do you need help? WhatsApp: 8613592531525

info@trifumac.com Hotline:+8613592531525

HPT Hydraulic Cone CrusherIntroduce

  HPT Series highly efficient Hydraulic Cone Crusher is a world-level cone crusher introduced the up-to-the-minute technology of Germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.




HPT Hydraulic Cone CrusherAdvantage

  1.High crushing ratio and production efficiency.

  2.Less spare part consumption and low operation cost.

  3.Between-layer pressuring crushing and better finished product shape.

  4.Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.

  5.Thin oil lubrication makes the life time increased.

  6.Various crushing cavity.

  7.Easy maintenance and operation.

  8.The crusher can provide customers larger capacity, better product shape, and easy operation.




HPT Hydraulic Cone CrusherWorking Principle

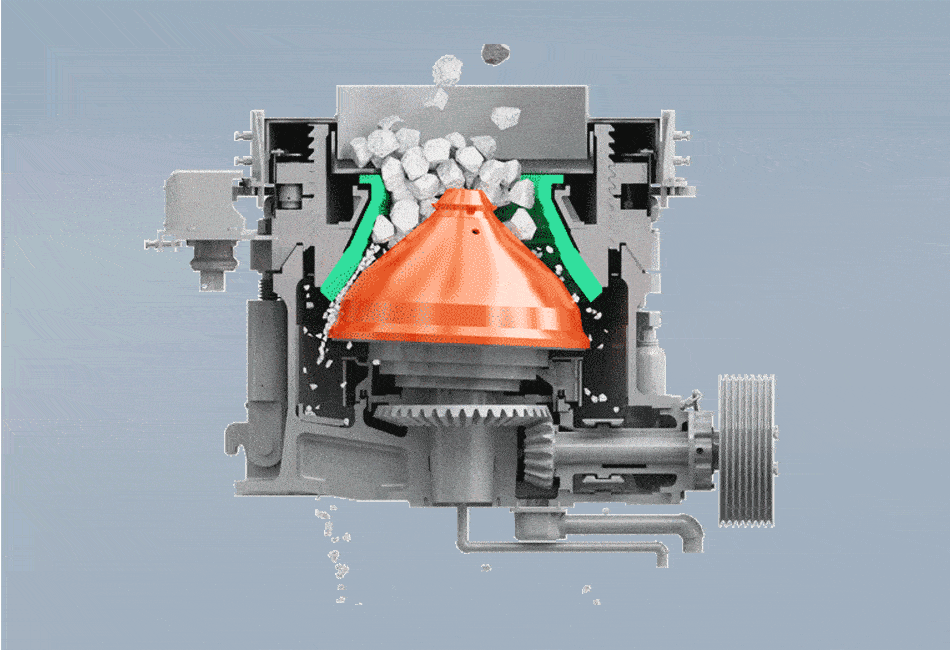

  The crushing principle of Hydraulic Cone Crusher is finished between fixed cone plate and movable cone plate. The cone crusher ’s motor drives the horizontal axis of the cocrusherthrough triangle belt and pulley, the horizontal axis drive the eccentric shaft bush to rotate through gear transmission. The eccentric shaft drives the main shaft to make the movable cone plate swing at a regulated track from time to time, the materials are crushed due to constant pressed and crooked in the crushing cavity. The finished products are discharged from the discharging open.



HPT Hydraulic Cone CrusherApplication Scope

HPT Hydraulic Cone CrusherTechnical Parameter

Type

Cavity (coarse/fine)

Close Side feed opening(mm)

Min CSS (mm)

Capacity (tPh)

Power KW(HP)

HPT300

C1 Extra Coarse

230

25

220-440

250(350)

C2 Coarse

210

20

190-380

M Medium

150

16

175-320

F1 Fine

105

13

110-260

F2 Extra Fine

80

10

100-240

HPT500

C1 Extra Coarse

330

38

425-790

400(500)

C2 Coarse

290

30

380-700

M Medium

210

22

330-605

F1 Fine

130

16

270-535

F2 Extra Fine

95

13

200-430

HPT800

C1 Extra Coarse

350

38

545-1200

630(850)

C2 Coarse

300

32

495-1050

M Medium

265

25

470-950

F1 Fine

220

17

385-730

F2 Extra Fine

150

14

310-600

F3 Extra Fine

90

10

260-550
