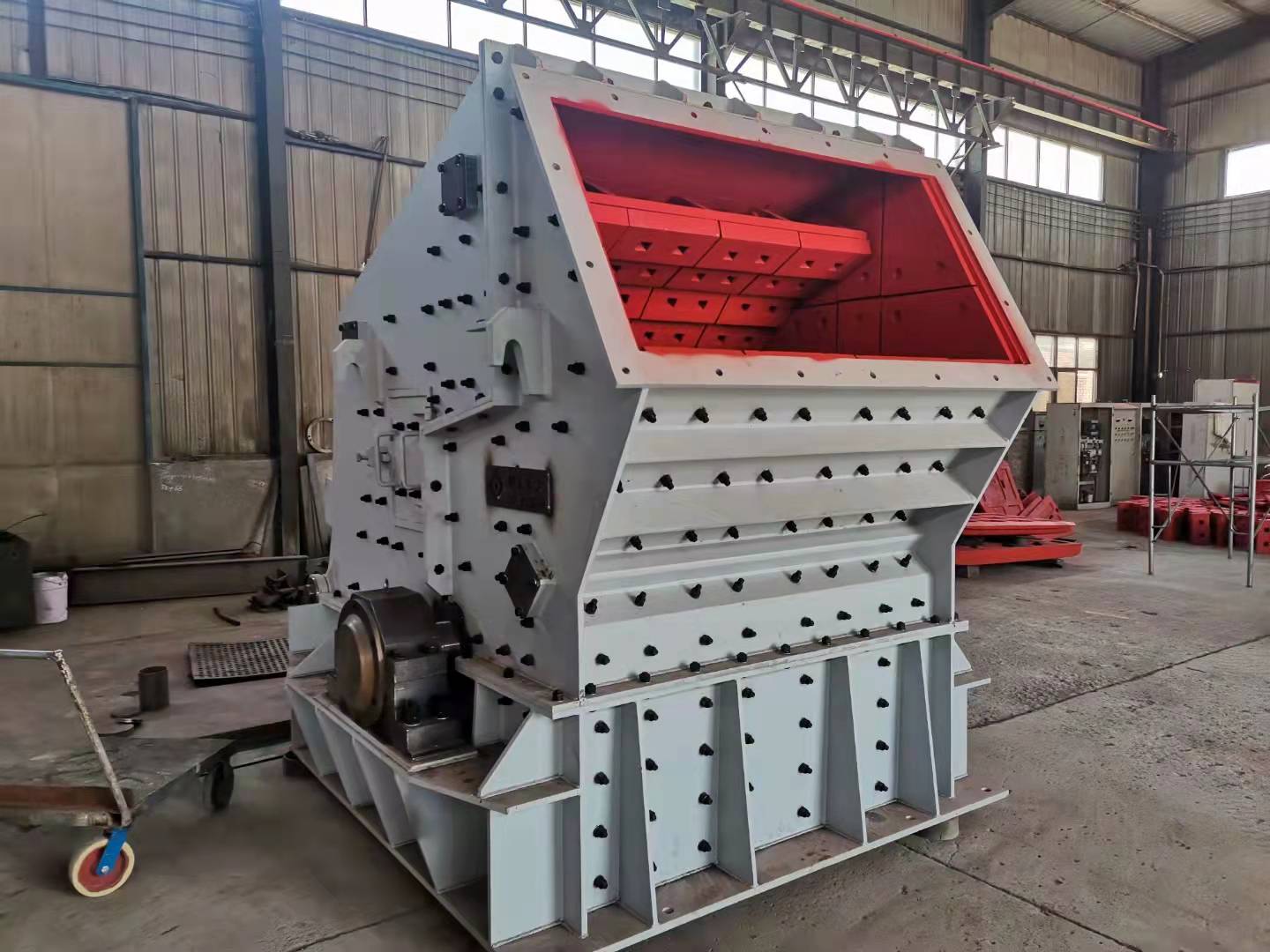

PF Impact Crusher

The impact crusher adopts new manufacturing technology and unique structural design, so that the finished product particles are cubic, no tension and cracks, and the shape is better. The equipment can crush all kinds of coarse, medium and fine materials (such as granite, limestone, concrete aggregate, etc.) with feed particle size no more than 800mm and compressive strength no more than 350Mpa.

1.Big crushing ratio, high crushing efficiency, cubic shape production.

2.The gap between plate hammer and impact hammer can be adjusted, and the discharging size can be controlled effectively.

3.The high chrome hammer is wearable.

4.Simple structure, and it is mainly including frame, rotor, and impact plate. The frame can be opened quickly by jack device in order to change spare parts and maintain.

5.The rotor and main shaft is connected by the Clamping Sets, which is easy for maintenance.

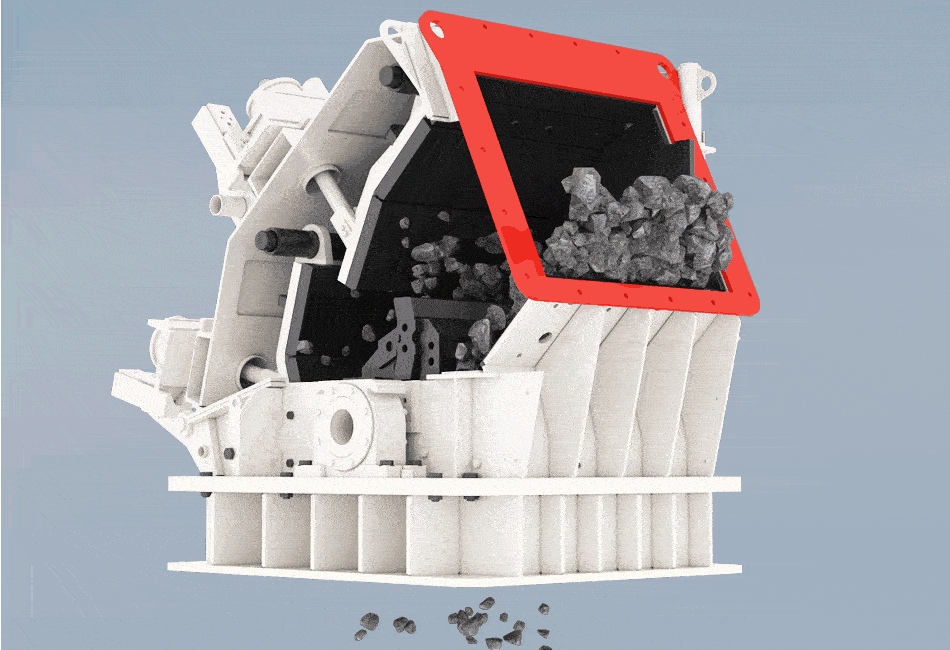

Impact crusher is a kind of crushing machine which uses impact energy to crush materials. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it collides with the plate hammer on the rotor, and then it is thrown to the impact device for crushing again. Then, it bounces back from the impact lining plate to the plate hammer action area for re crushing. This process is repeated, and the materials enter the first, second, third and impact cavities from large to small for repeated crushing until the materials It is crushed to the required size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the size and shape of the material。
